Extremely high volume document scanner, outstanding paper handling, maximum operator comfort and a very low cost of ownership makes the SCAMAX® 8×1 production scanner the right tool for all high volume scanning applications.
High volume document scanner with precision and speed
About
A high volume document scanner used in a daily production environment are subject to very high expectations from users. Performance in terms of speed, brilliance of image quality and robustness with respect to life expectancy are basic requirements in large volume scanning projects.
Modular designed, upgradable scanners employing technologies aimed at long-term usability are what the high volume scanning market demands. With the SCAMAX® 8×1 scanner series InoTec GmbH positions a new, unique performance class in the high performance scanner market.
Download Brochure
Click below to download the brochure
High Speed

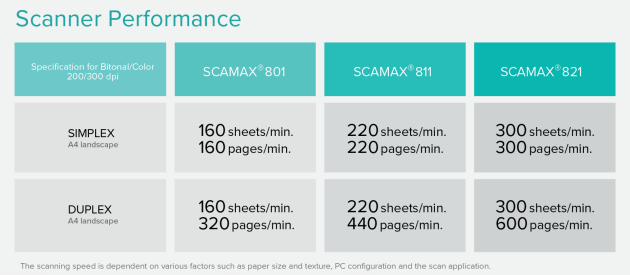

At 300dpi the InoTec SCAMAX® 8×1 can scan 300 ppm and 600 ipm making it the best high volume document scanner
High Volume
A dual input hopper tray with 1,000 sheet capacity each, makes the 8×1 the best high volume document scanner
High Resolution
The InoTec’s SCAMAX® 8×1 can scan at an optical resolution of 600 dpi
Height Adjustable
For ergonomic, effortless operation.
The optimal operating height can be adjusted for different operators at any time.
NoSCRATCH Glass guide
For guaranteed scratch resistance to paper clips and staples (With a three-year warranty on NoScratch glass guides)
Optional Double Input System
With a capacity of 2,000 sheets (1,000) per tray for continuous paper input and uninterrupted scanning procedures.
Specifications
What qualifies for FADGI 3-star ratings?
The Federal Agencies Digital Guidelines Initiative (FADGI) is a benchmark of the high-quality digitisation standards required to ensure that your digital copies are as accurate as possible, from the tone and white balance to the metadata and digital noise. FADGI 4-star is the highest available of the available rankings at ‘Exemplary’, with FADGI 3-star being ‘Excellent’
Standardly, FADGI compliant equipment has a minimum of 300dpi and 24bits for colour imagery, and are capable of saving into archive-friendly accessible formats with minimal distortion and even lighting.
You can rest assured with a FADGI 3-star rated scanner that your documents will be captured with as much accuracy as is possible.
Camera resolution
600dpi optical resolution
Output resolution – Full speed at 150, 200, 300 dpi. Limited speed 400 and 600 dpi, Dual or multi resolution possible
CCITT Group IV, JPEG or full speed uncompressed raw output
Lighting system
Focusing white LE illumination unit
Bitonal/ binarisation – Intelligent dynamic threshold with interactive optimisation
Grey / Colour image
8-bit, 256 grey levels, 24 bit, 16.8 million colours (True colour)
Image processing – Bicubic deskew, black border removal, content based rotation, colour drop out, CCP in Q2/2017
Document processing
Document input – Auto feed from stack or single sheet feed, hand feed, continuous feed dual input
Paper stack
Up to 1000 Sheets, 12.5-inch width up to 325-inch length
Formats – Ledger, legal, Letter, executive, invoice, – 30 to 280gm, up to 1/5-inch (5mm) thickness
Feed process control – Mechanical sheet separation and sorting, double feed control via six ultrasound sensors that can be independently programmed.
Scan area
up to three full height paper trays, two front, one back, can be used for continuous feed and document separation
Imprinter – intelligent front and back imprinter, optional 600dpi four-line imprinter available, barcode imprinting
Daily duty cycle
Unlimited 24/7 production, 65mil pages endurance
Interfaces
Operation – programmable touchscreen interface and foot pedal
Drivers – ISIS, TWAIN, API, Linux
OS Support – Windows 7,8, 8.1, 10. Each at 32 or 64 bit.
PC connection – USB 3 Full speed
Book a demo with the 8×1 high volume document scanner
